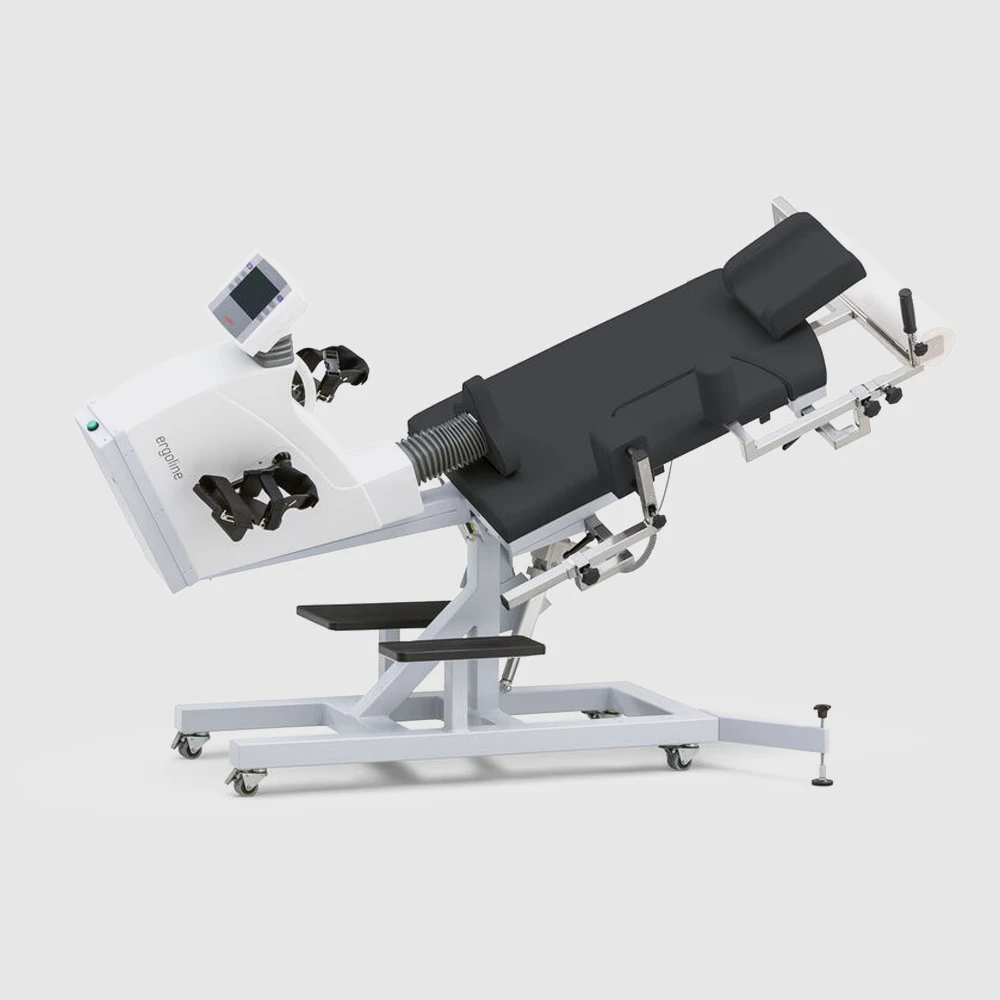

ergoselect 1200 Reclining Ergometer
The classic tilt-recline ergometer for dynamic stress echocardiography examinations. The angle of inclination can be electrically set both horizontally and laterally between 0 and 45°. The drop section in the couch surface facilitates the ultrasound examination. Multiple adjustable support elements also provide the patient with stability in the lateral position.
Features
- patient weight up to 140 kg
- horizontal and lateral inclination up to 45°
- remote motor control
- load range from 6 to 1000 watts
- choice of upholstery colors available view color choices
- universal interfaces
- wide range of expansion options
Details
Drop section for echocardiography
The folding pad element considerably simplifies ultrasound examinations in lateral patient positions.Remote control
A compact remote control is used to drive the motors for examination couch adjustment (tilt and incline) and to adjust the seat. 3 ergometer positions can be saved and recalled at the touch of a button.Support bracket
A stable support bracket provides the patient with a secure hold while moving on and off the reclining ergometer.Leg rests
The reclining stress echo ergometer can be equipped with removable leg rests on both sides, making it suitable for interim examinations as well.ECG connection/universal interfaces
All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems. ergoline ergometers offer a wide range of interfaces for this purpose. In addition to the standard RS-232 and USB interface, analog and wireless connections via Bluetooth or WLAN are available as well.Safety belt
The optionally available safety belt guarantees additional patient safety.Technical Details
Reclining Ergometer:- Length: 240 cm, foot print (max.) ca. 260 cm x 120 cm
- Width: 90 cm
- Height: 180 cm (max.)
- Weight: approx. 140 kg
Reclining Ergometer with packaging:
- Length: 209 cm
- Width: 80 cm
- Height: 157 cm
- Weight: approx. 158 kg
ergoselect 1200 Reclining Ergometer
The classic tilt-recline ergometer for dynamic stress echocardiography examinations. The angle of inclination can be electrically set both horizontally and laterally between 0 and 45°. The drop section in the couch surface facilitates the ultrasound examination. Multiple adjustable support elements also provide the patient with stability in the lateral position.
Features
- patient weight up to 140 kg
- horizontal and lateral inclination up to 45°
- remote motor control
- load range from 6 to 1000 watts
- choice of upholstery colors available view color choices
- universal interfaces
- wide range of expansion options
Details
Drop section for echocardiography
The folding pad element considerably simplifies ultrasound examinations in lateral patient positions.Remote control
A compact remote control is used to drive the motors for examination couch adjustment (tilt and incline) and to adjust the seat. 3 ergometer positions can be saved and recalled at the touch of a button.Support bracket
A stable support bracket provides the patient with a secure hold while moving on and off the reclining ergometer.Leg rests
The reclining stress echo ergometer can be equipped with removable leg rests on both sides, making it suitable for interim examinations as well.ECG connection/universal interfaces
All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems. ergoline ergometers offer a wide range of interfaces for this purpose. In addition to the standard RS-232 and USB interface, analog and wireless connections via Bluetooth or WLAN are available as well.Safety belt
The optionally available safety belt guarantees additional patient safety.Technical Details
Reclining Ergometer:- Length: 240 cm, foot print (max.) ca. 260 cm x 120 cm
- Width: 90 cm
- Height: 180 cm (max.)
- Weight: approx. 140 kg
Reclining Ergometer with packaging:
- Length: 209 cm
- Width: 80 cm
- Height: 157 cm
- Weight: approx. 158 kg
