• timeless design
• high-precision measuring technology
• whisper-quiet belt drive
• base plate and handlebar column made of aluminum
• wide, open step-through frame
• patient weight up to 200 kg
• load range from 6 to 1000 watts
• adjustable in steps of 1 watt
• pedals stop moving after use
• wide range of expansion options

High-quality aluminum base plate
The massive aluminum platform guarantees a high level of stability, while the non-slip inlays ensure additional patient safety.

Easy access
The broad open step-through frame and low entry height facilitate access to the ergometer, especially for older or disabled patients.

Stable up to patient weights of 200 kg
Thanks to the seat height adjustment with gas spring or motor, patients weighing up to 200 kg can safely undergo ergometric examinations.

Whisper-quiet drive technology
The 2-stage belt drive of the load unit, specifically developed by ergoline, guarantees quiet and slip-free operation – even at high loads.

Comfortable, secure handlebar clamping
The ergonomic, closed handlebar has a wide adjustment range and thus offers the optimal grip position for every patient. The convenient clamp lever securely locks the handlebar in place.

ECG connection
The ergoline interface protocol is now considered the industry standard. All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems.

Universal interfaces
A wide range of connection options guarantees reliable communication with external devices such as PC-based ECG units and ECG recorders. In addition to the standard RS-232 and USB interface, we of course also offer analog and wireless connections via Bluetooth or WLAN.

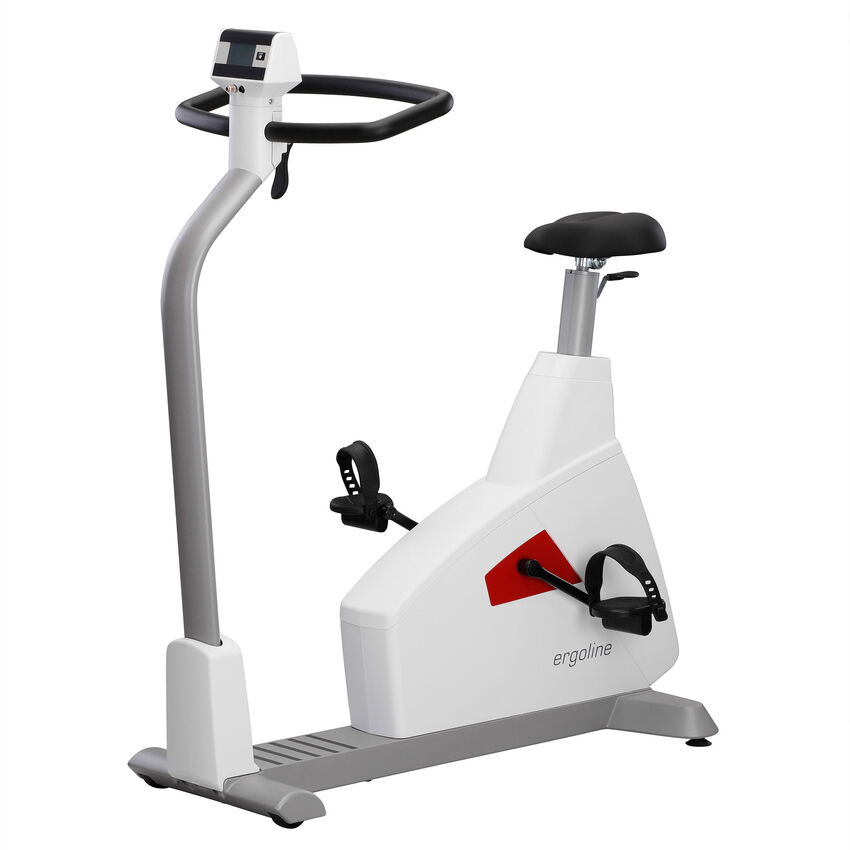

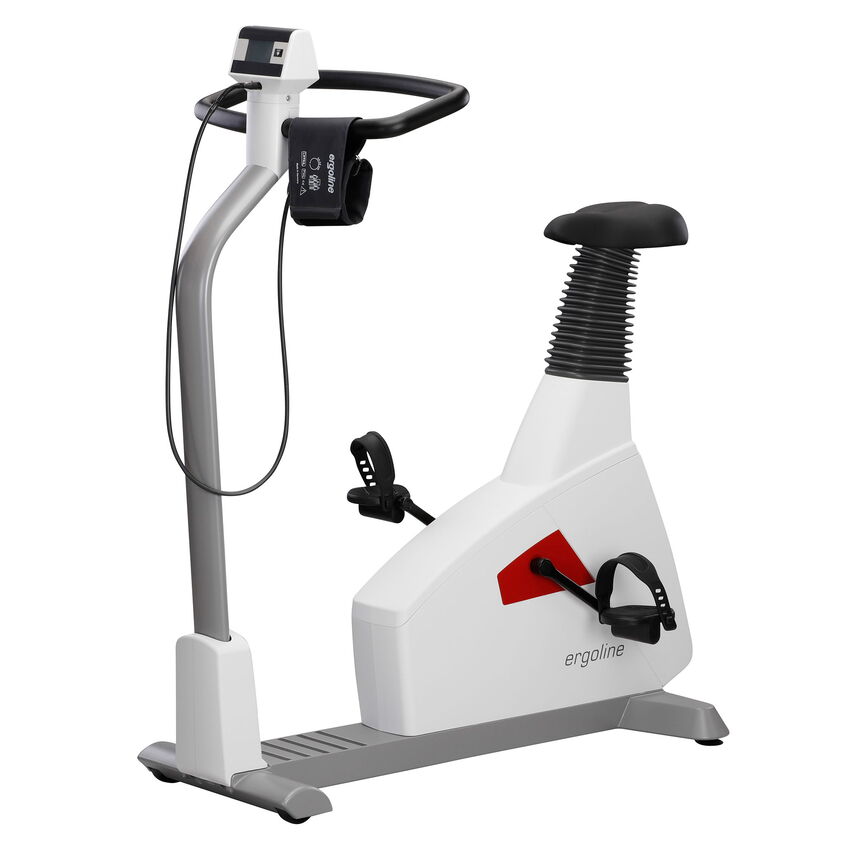

Control terminal “M” (Remote Control)
The compact control terminal M enables ergometer operation via PC-based ECG systems or ECG recorders. The display shows the relevant values (such as watts, speed (RPM), blood pressure, and SpO2). The speed is displayed for the patient—on ergometers with electrical saddle adjustment, two buttons are provided for direct adjustment of the saddle height.

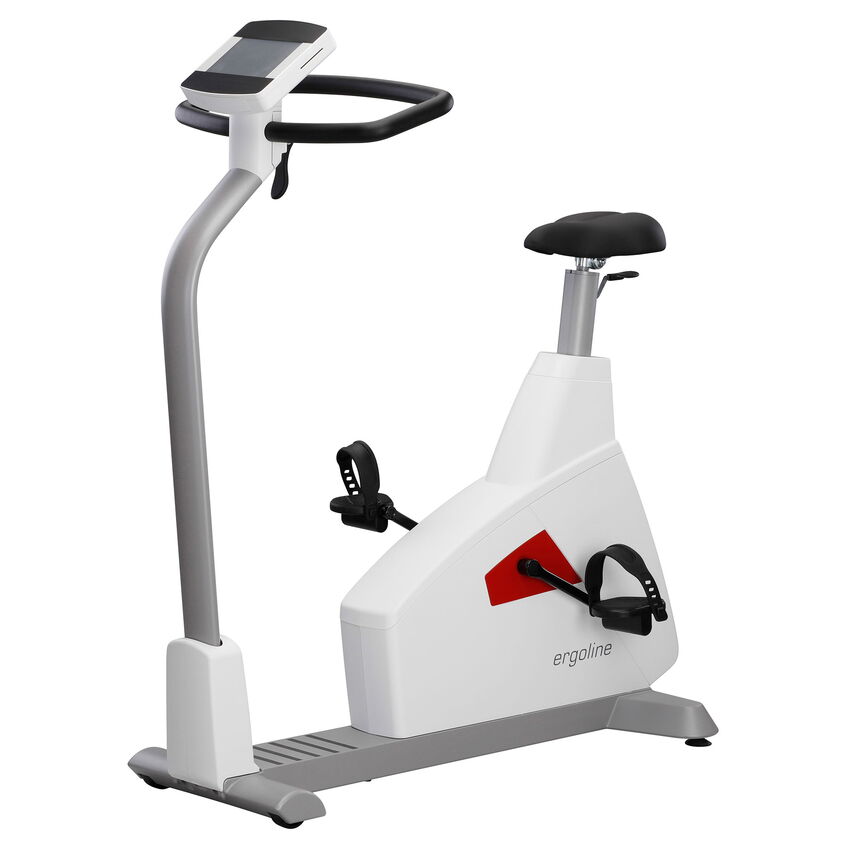

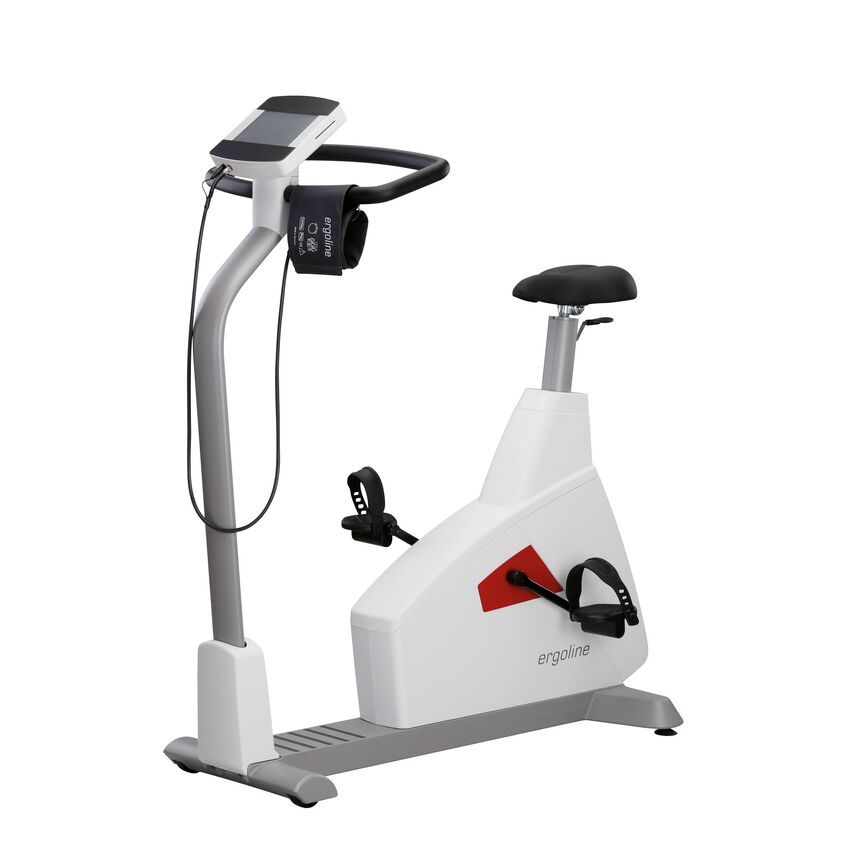

Control terminal “T” (Color Touch)
The convenient color touch control terminal (optional) stands out for its brilliant display and intuitive, simple operation. Whether remote-controlled via PC-based ECG system/ECG recorder, for exercise tests, or for using the ergometer as a training device (e.g., in cardiological rehabilitation)—the control terminal T offers convenient support for all application areas of the ergometer.

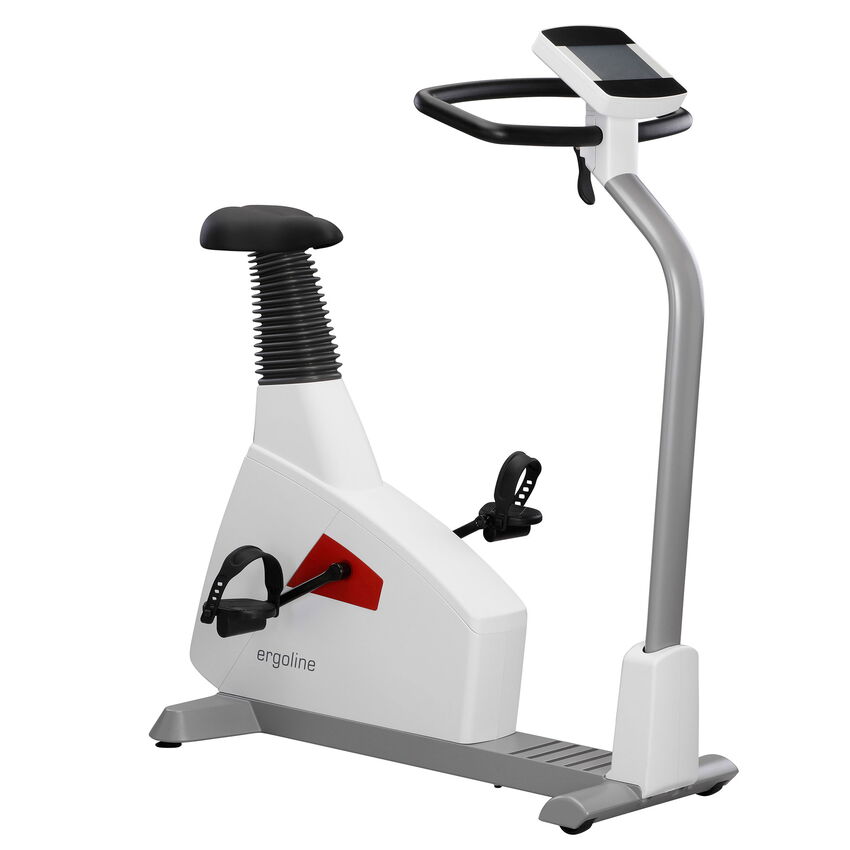

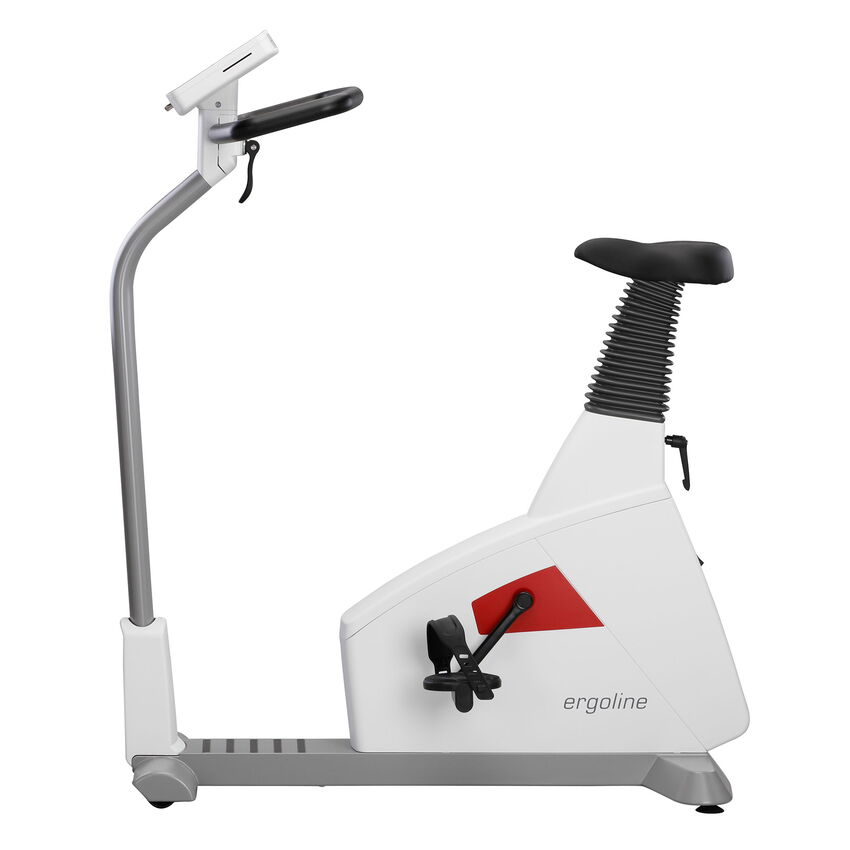

Motorized saddle adjustment
Comfortable alternatives to mechanical saddle height adjustment: A motorized seat height adjustment makes it easier for elderly or mobility-impaired patients to mount the exercise bike, which is often problematic for them. The adjustment is easily made using buttons on the control unit.

Motor-assisted adjustment of handlebar height
The handlebar and seat position can be precisely adjusted to the respective patient for special applications (for instance, performance diagnostics, rehabilitation).

Pedal cranks, adjustable
The length of the pedal cranks can be adjusted in a range from 7.5 to 17.5 cm.

Comfort pedals
Extra-wide pedals with adjustable pedal straps (ratchet mechanism).

Horizontal saddle adjustment
The adapter enables horizontal shifting of the saddle by approx. 10 cm. In conjunction with the adjustable pedal cranks and the dual handlebar adjustment (height and tilt), this makes it possible to set the most ergonomically effective training position for every patient. Using the horizontal saddle adjustment option reduces the maximum permitted patient weight to 150 kg.

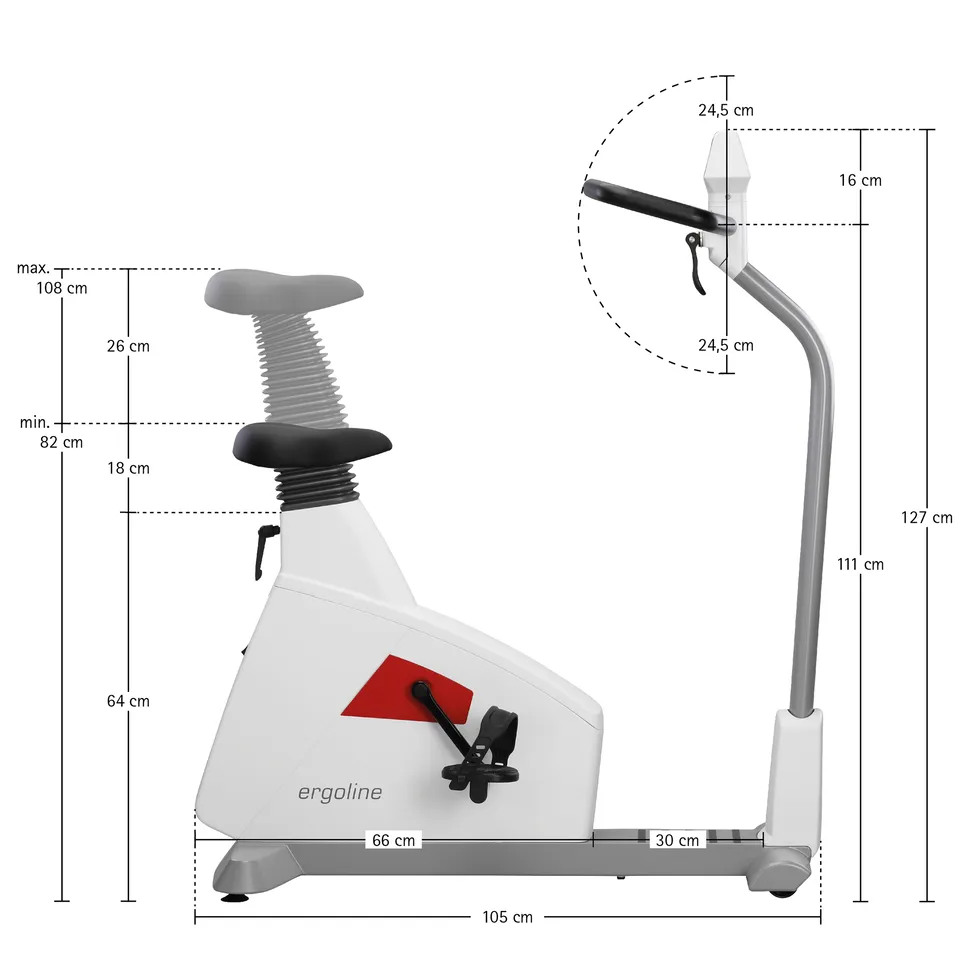

Ergometer:

• Length: 105 cm
• Width: 49 cm (width of handlebar approx. 53 cm)
• Height: 127 cm (114 – 140 cm with electrically adjustable handlebar)
• Weight: approx. 66 kg

Ergometer with packaging:

• Length: 116 cm
• Width: 60 cm
• Height: 148 cm
• Weight: approx. 80 kg
