MESI mTablet Health Diagnostics Tool Canada

Introducing the new MESI mTABLET- Medical Diagnostic Tool

The MESI mTABLET has always been the heart of our medical diagnostic tool – the same trusted platform you rely on, now faster and more powerful than ever. Fully compatible with all existing modules, it keeps your workflow running smoothly while giving you even more efficiency and performance.

  • Faster performance
  • Better usability
  • Greater versatility
  • Seamless Continuity

Built for the future, without leaving the past behind.

Existing MESI mTABLET systems remain fully supported – with a simple upgrade path available.

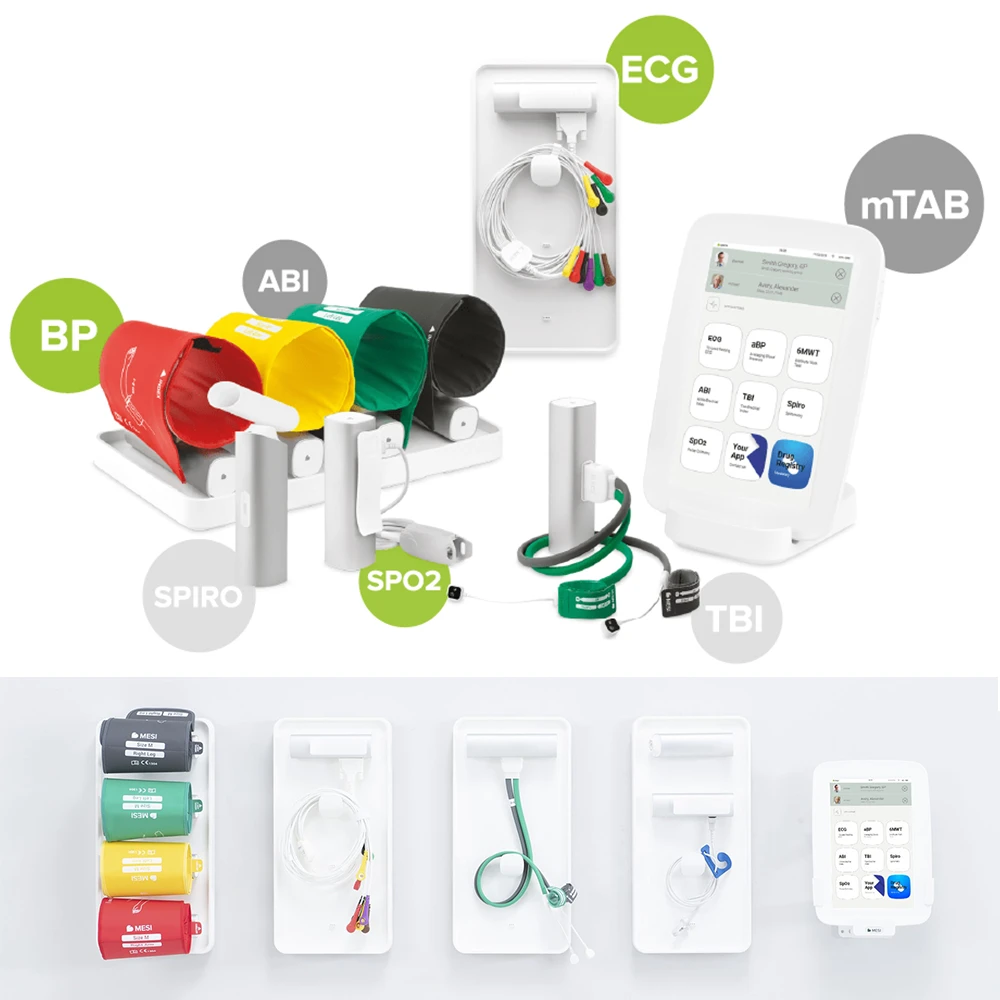

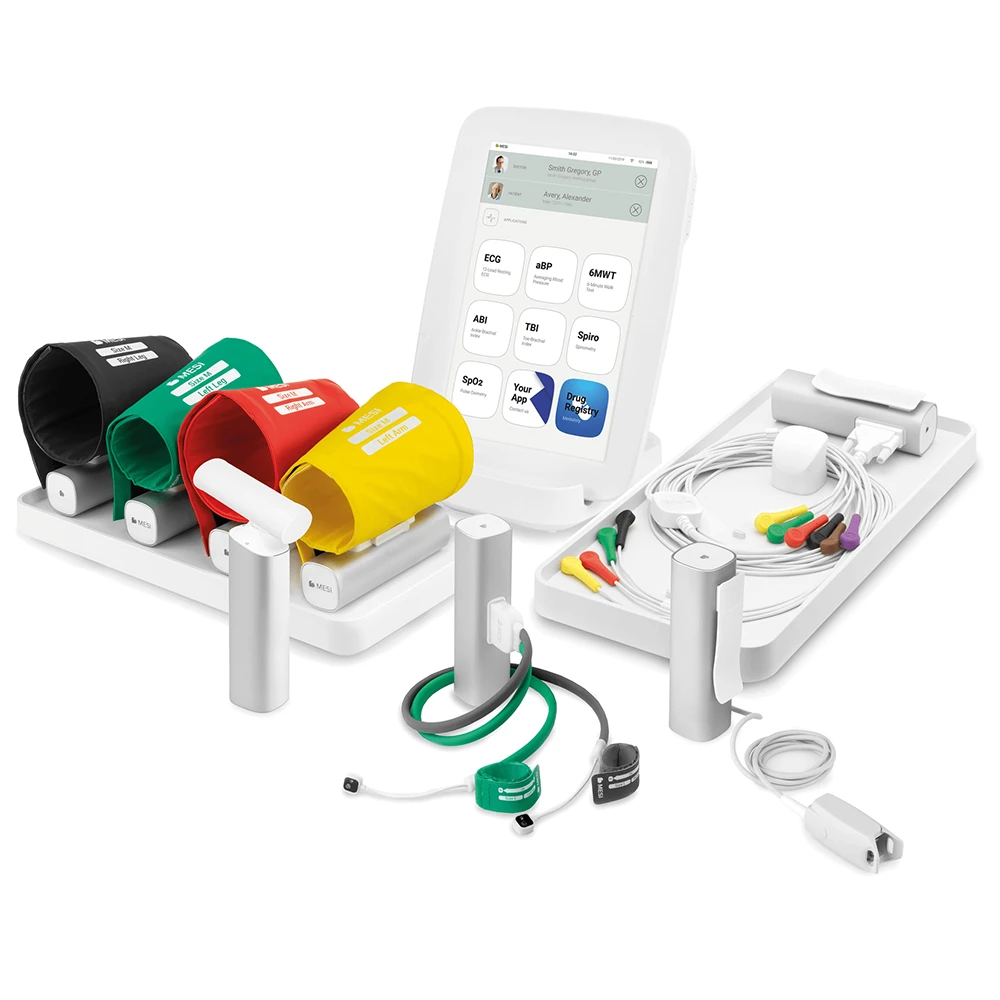

The new mTABLET is fully compatible with all current MESI diagnostic modules and applications. Contact us for MESI mTablet Health Diagnostics Tool in Canada

MESI mTablet Health Diagnostics Tool from Image Monitoring

Image Monitoring Inc. provides medical equipment solutions and support for healthcare professionals in Canada. If you are looking for the MESI mTablet Health Diagnostics Tool in Canada, our team can help you learn more about the system, its applications, availability, and suitable configuration for your healthcare environment.

Contact Image Monitoring to discuss your MESI mTablet diagnostic equipment requirements and find the right solution for your clinical workflow.

  • Features for MESI mTablet Health Diagnostics Tool

    More memory & faster processor
    Faster performance, even with multiple modules and apps

    High-resolution camera with flash
    Clearer wound and dermatology images, even in lower light

    Wider Wi-Fi coverage
    Reliable performance in clinics and hospitals

    Replaceable back clip
    Quick on-site replacement to reduce downtime

    Better ingress protection (IP42)
    Designed for daily use in challenging clinical environments, even in the field

    Bluetooth barecode scanner support
    Faster and safer patient identification

  • MESI mTablet Specifications

    Dimensions

    • Width: 199 mm
    • Depth: 35 mm
    • Height: 278 mm
    • Weight: 800 g

    Power & Battery

    • AC/DC adaptor: NEO030.0-I-X-05
    • Rechargeable Lithium-Polymer battery
    • Capacity: 8800 mAh
    • Battery operation: More than 8 hours
    • Input: 100-240 V AC / 50-60 Hz / 600-300 mA
    • Output: 5V DC / 5.0 A

    Classification

    • Protection against electric shock: Class II equipment
    • Software safety classification: Class B

    LED indications MTABDSW

    • Green LED: Displays connection state (fixed light)
    • Orange LED: Represents LAN activity

    LED indications MTABMD

    • Green LED: Device is charging
    • Red LED: Device battery is low
    • White LED (Blinking): Device is starting

    LED indications power supply

    • Green LED: Power “ON”

    Specifications

    • Operating System: MESI OS 2.0 (based on Android OS)
    • Processor: 64-bit ARM v8.0 processor (octa-core)
    • Barcode reader: 1D/2D barcode imager
    • Screen: 1280 x 800 px IPS
    • Memory: 64 GB eMMC
    • RAM: 4GB
    • Connectivity: 2.4 & 5 GHz, 802.11a/b/g/n/ac/ax-ready
    • Camera: 20 MP with strobe
    • Environment: IP42, 90 cm drop resistant
    • Audio: Mono speaker
    • Security: 2 step authentication – User password or PIN,
    • SMS verification code HTTPS transmission protocol

    Connectivity-Bluetooth

    • Receiving station:
      Frequency range: 2402 MHz – 2480 MHz
      Bandwidth: 1 MHz
    • Transmitter:
      Output power: 8 – 10 dBm
      Frequency range: 2402 MHz – 2480 MHz
      Modulation: GFSK

    Connectivity-Wi-Fi

    • Receiving station:
      Frequency range: 2.4 & 5 GHz, 802.11a/ b/ g/ n/ ac
      Bandwidth: 1.4/ 3/ 5/ 10/ 15/ 20 MHz
    • Transmitter:
      Output power: 20-27 dBm
      Frequency range: 2.4 & 5 GHz, 802.11a/ b/ g/ n/ ac
      Modulation: ODFM, DSSS

    Operating Conditions

    • Ambient temperature: +10 °C to 35 °C
    • Relative humidity: 15% to 90%, non-condensing
    • Atmospheric pressure: 700 hPa to 1060 hPa

    Transport & Storage Conditions

    • Temperature:
      −20 °C to 60 °C (<1 month)
      −20 °C to 45 °C (<3 month)
      −20 °C to 25 °C (<12 month)
    • Relative humidity: 15 to 90 % (no condensation)
    • Air pressure: 500 to 1060 hPa
