ergoselect 100 Bicycle Ergometer
The classic ergometer for exercise ECG tests. From a powerful ergometer for exercise ECG and performance diagnostics to stand-alone use for heart rate-controlled training—the integration of different modules offers maximum user flexibility for assembling an ergometer that truly meets every need.
Features
- functional design
- innovative, future-proof technology
- hygienic, easy-to-clean surfaces
- mechanical-assisted seat adjustment
- patient weight up to 160 kg
- load range from 6 to 1000 watts
- 10 user-programmable exercise test protocols
- excellent stability
- wide range of expansion options
Details
Max. patient weight up to 160 kg
The stepless mechanical seat adjustment and sturdy design ensure the safe operation of the ergometer, even with patient weights up to 160 kg.High-quality materials
The noise-insulating ergometer case made of high-quality, specially coated polyurethane foam features an easy-to-clean, sweat-resistant surface.Precise load control
Thanks to the use of high-quality control electronics and reliable components, our devices don’t just meet the standard specifications for medical ergometers, but far exceed them – over the entire load range from 6 to 1000 watts.ECG connection
The ergoline interface protocol is now considered the industry standard. All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems.Horizontal saddle adjustment
The adapter enables horizontal shifting of the saddle by approx. 10 cm. In conjunction with the adjustable pedal cranks and the dual handlebar adjustment (height and tilt), this makes it possible to set the most ergonomically effective training position for every patient. Using the horizontal saddle adjustment option reduces the maximum permitted patient weight to 150 kg.Universal interfaces
A wide range of connection options guarantees reliable communication with external devices such as PC-based ECG units and ECG recorders. In addition to the standard RS-232 and USB interface, we of course also offer analog and wireless connections via Bluetooth or WLAN.Control terminal “K”
In addition to control by external devices, stand-alone exercise tests, or manual operation, the control terminal K also allows for performing freely programmable training sessions and performance tests. For example, during a heart rate-controlled training, the chest strap records the pulse signals and automatically regulates the ergometer output to ensure a constant heart rate. The clearly structured graphic display shows the current parameters and the course of the heart rate and performance in curves.Pedal cranks, adjustable
The length of the pedal cranks can be adjusted in a range from 7.5 to 17.5 cm.Comfort pedals
Extra-wide pedals with adjustable pedal straps (ratchet mechanism).Handlebar rotation

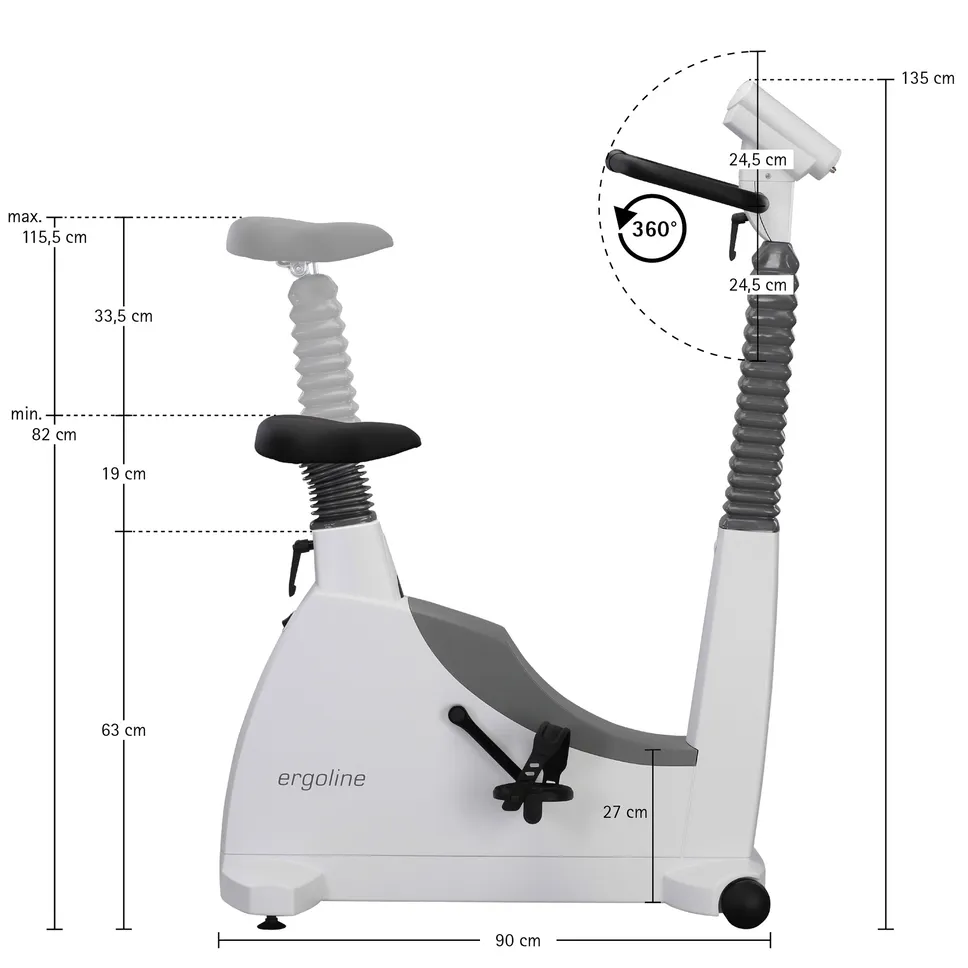

The handlebar of the ergoselect 100 can be rotated 360°. The handlebar and seat position can be precisely adjusted to the respective patient for special applications (for instance, performance diagnostics, rehabilitation).Technical Details
Ergometer:- Length: 90 cm
- Width: 42 cm (width of handlebar approx. 53.5 cm)
- Height: 135 cm
- Weight: approx. 74.5 kg
Ergometer with packaging:
- Length: 107 cm
- Width: 60 cm
- Height: 146 cm
- Weight: approx. 92.5 kg
