• patient weight up to 200 kg
• horizontal up to 38° and lateral inclination up to 39°
• remote motor control (wireless option)
• ergometry unit folds away easily
• whisper-quiet belt drive
• load range from 6 to 450 watts
• maximum comfort
• choice of upholstery colors available view color choices
• universal interfaces
• wide range of expansion options

Patient weight up to 200 kg
The stable base frame and the vibration-free design guarantee the highest level of safety and enable the use of the reclining ergometer with morbidly obese patients.

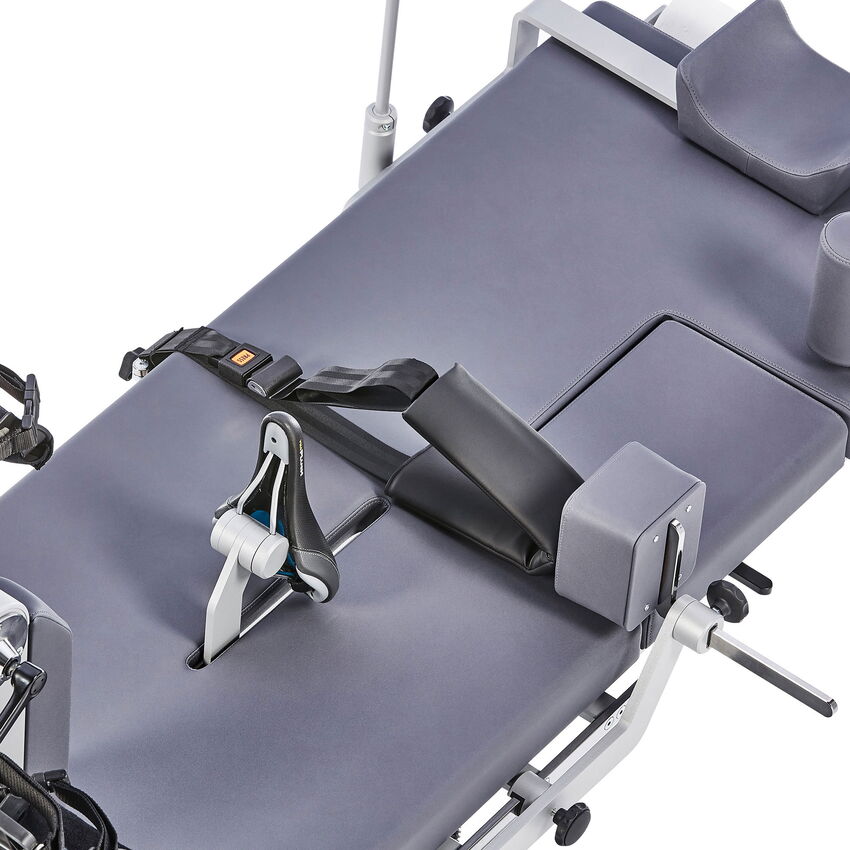

Hip support
The variably adjustable hip pad ensures secure lateral patient support during stress echocardiography examinations in lateral positions.

Underarm support
Together with an integrated handle, the easily adjustable underarm pads offer additional patient support during the lateral tilting of the stress echo reclining ergometer.

Headrest
The comfortable headrest with lateral support can be moved over a wide range for easy adjustment to the patient’s body size. The laterally attached speed display is easy to read in any position and can be folded away when not in use.

Drop section for echocardiography
The easily folding cushion element considerably simplifies ultrasound examinations in lateral patient positions.

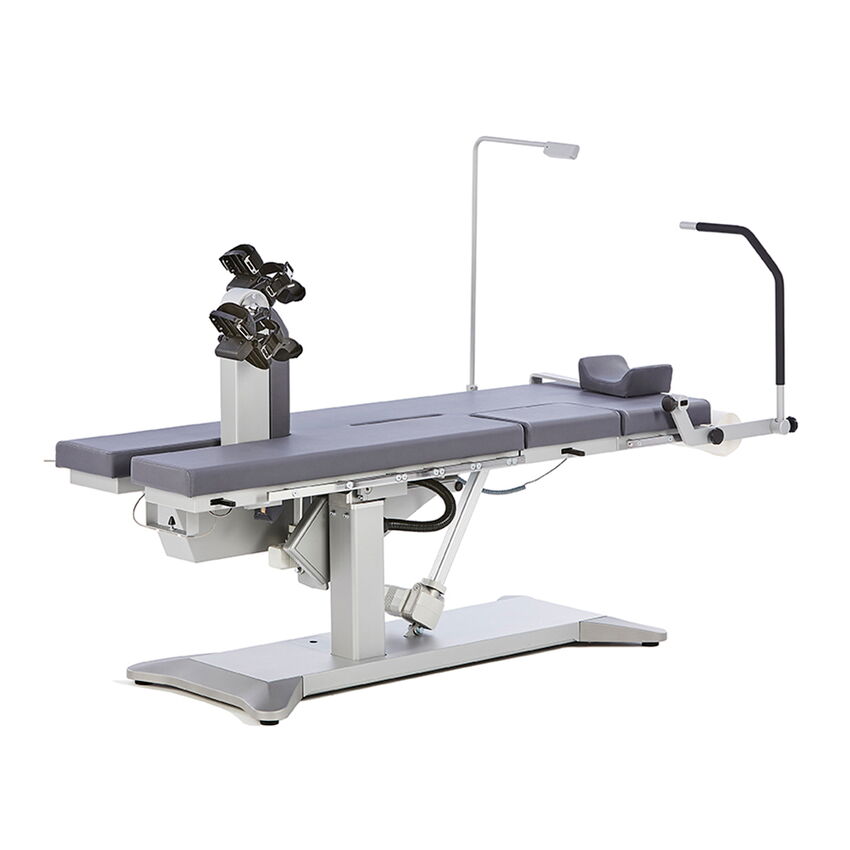

Compact ergometry unit
A few hand movements turn the ergoselect 12 into a full-fledged comfortable examination couch – the ultralight and compact ergometry unit is simply unlocked and lowered until flush with the couch surface.

Precise load control
Thanks to the use of high-quality electronic measuring systems and reliable components, our devices don’t just meet the standard specifications for medical ergometers, but far exceed them – over the entire load range from 6 to 450 watts. Moreover, the special two-stage belt drive ensures whisper-quiet operation during an ergometric test.

Seat
The seat can easily be pulled off, without leaving any inconvenient rails or mounting elements in the couch surface. Various seat adapters allow for adjustment to special patient sizes.

Pedal shoes
The specially developed pedal shoes secure the patient’s feet at the ergometry unit and reliably prevent slipping off the pedal cranks, even in lateral position.

Speed display (cadence)
During the ergometric test, the patient display shows the current speed for control, while additional icons warn against overly low or high speed. The display is directly connected to the headrest and can be folded away laterally when not in use.

Remote control
The examination position and seat settings can be conveniently adjusted via remote control with multi-position memory. A wireless version is available on request. The independent pivot areas for both motors make it easy to move the couch into any position.

Emergency Lowering
In the event of a power failure, the built-in battery-driven emergency lowering feature ensures that the ergometer is moved to the starting position so the patient can safely get off.

Chest compressions
The completely vibration-free design of the reclining ergometer even allows for performing chest compressions in horizontal position directly on the couch surface without the need to move the patient.

ECG connection/universal interfaces
All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems. ergoline ergometers offer a wide range of connection options. In addition to the standard RS-232 and USB interface, wireless connections via Bluetooth or WLAN are available as well.

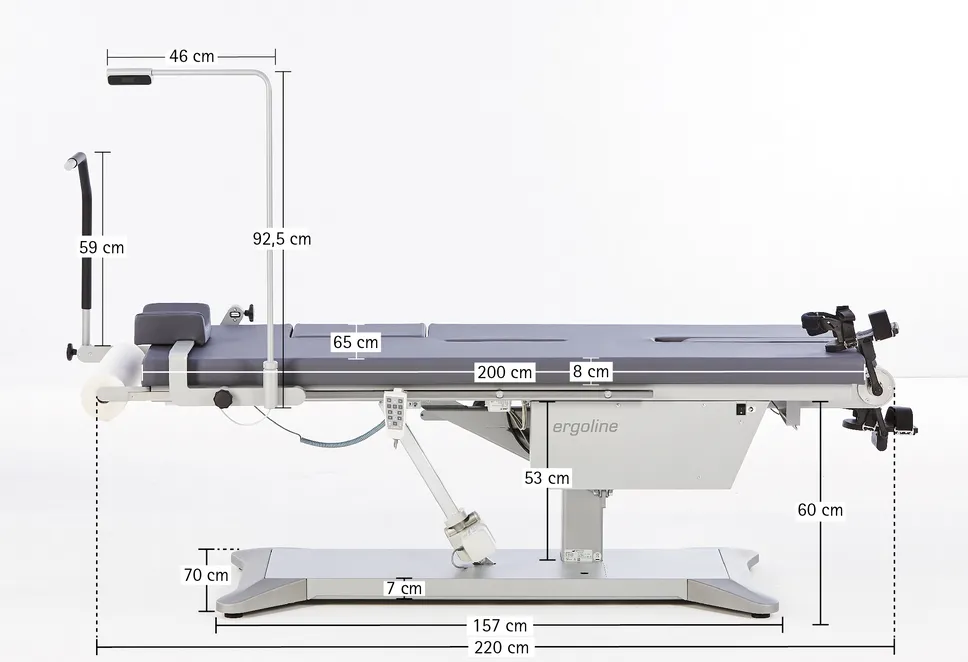

Ergometer:

• Length: 220 cm
• Width: 90 cm (with attachments)
• Height: 180 cm (max.)
• Weight: approx. 255 kg

Ergometer with packaging:

• Length: 230 cm
• Width: 98 cm
• Height: 110 cm
• Weight: approx. 295 kg
