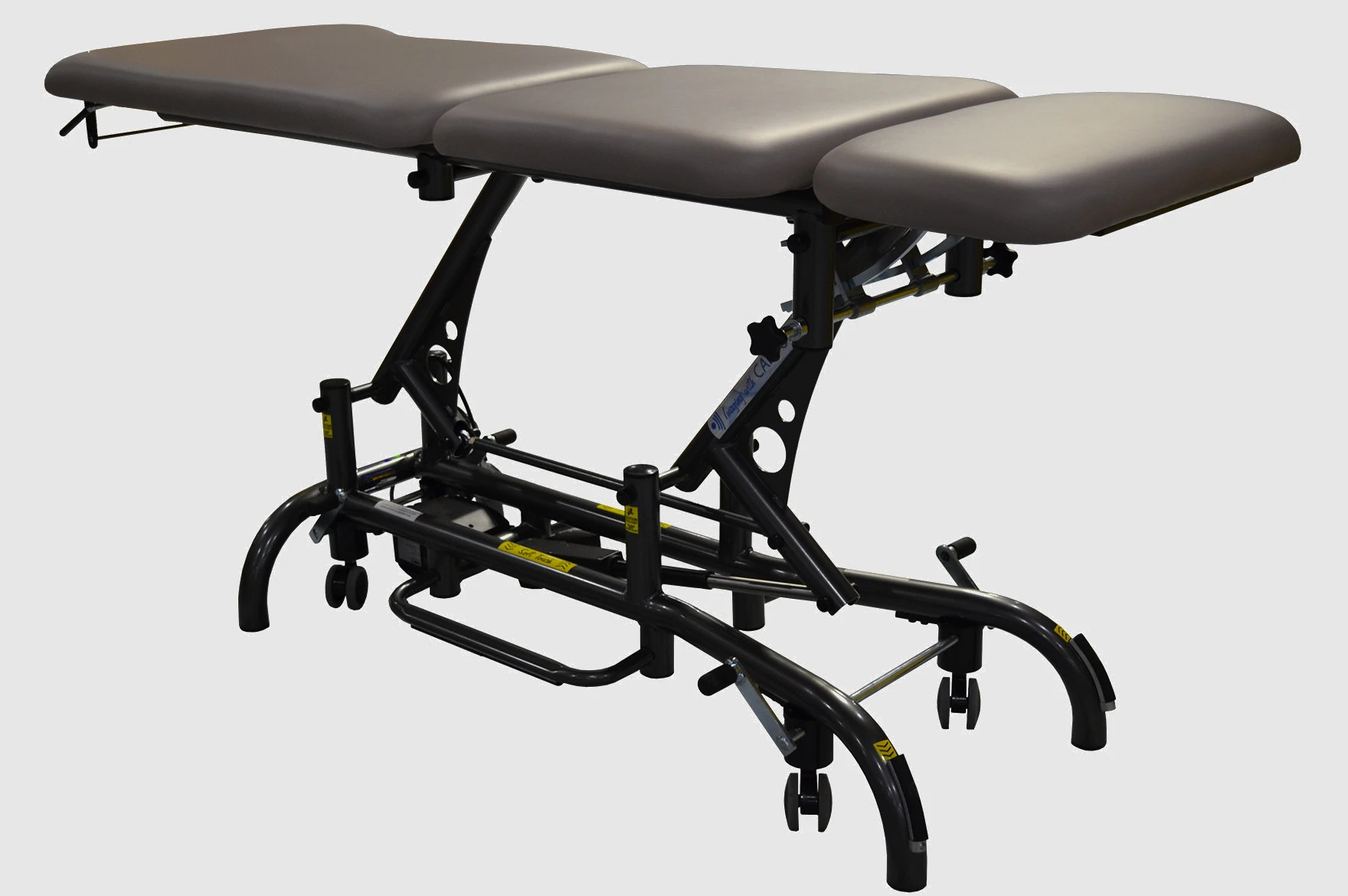

Ultra 100 Diagnostic Imaging Treatment Table
The Ultra 100 is an ultrasound table created for sonographers for ultrasound procedures. This imaging table is ergonomically designed with your body mechanics in mind to reduce sonographer fatigue and patient repositioning.

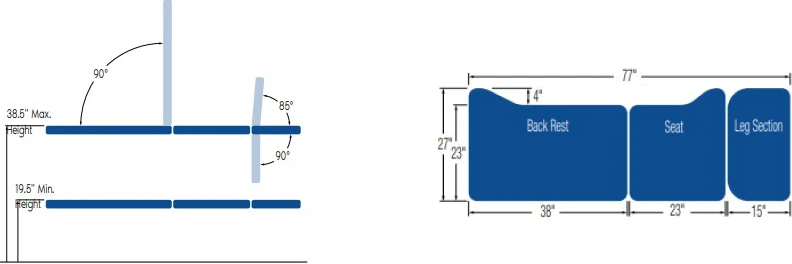

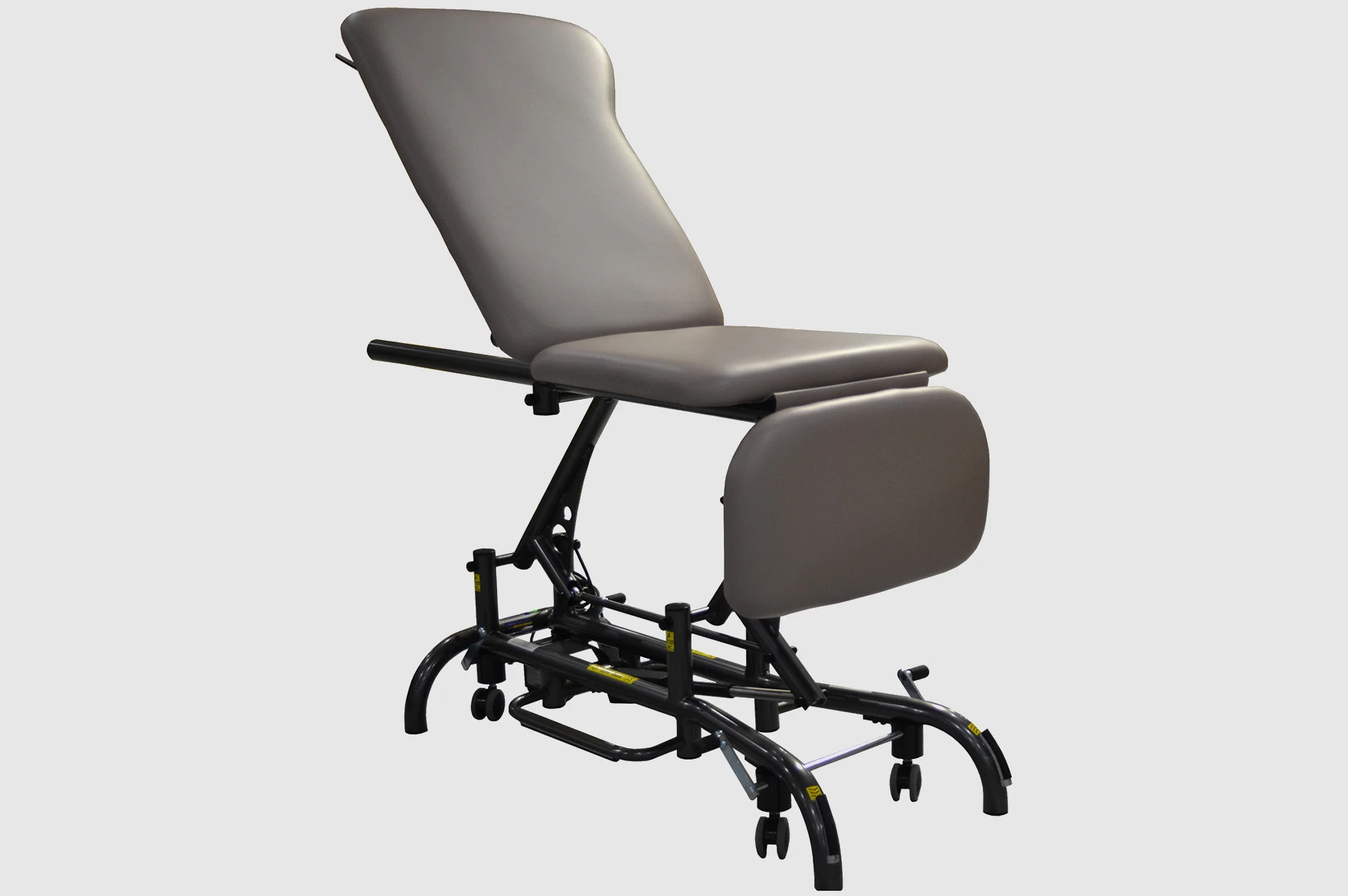

The Ultra 100 easily adjusts to optimize ergonomic positioning for the sonographer while maintaining patient comfort. The backrest raises 90 degrees; the leg section lowers 90 degrees and rises to 85 degrees.
Customizable ultrasound cut-out(s) are available according to your requirements.
Soft Touch Technology
Cardon’s patented Soft Touch Footswitch has been strategically positioned on the base of your imaging table. Minimal amount of pressure applied by your foot will raise and lower the table with ease.
3 Section Table
- Electric Hi-Lo Control: Soft Touch Technology
- Height Adjustment: 19.5” – 38.5”
- Customizable Cut-out(s)
- Examination Paper Holder
- Leg Section Adjustment: Positive locking system
- Center Section: Fixed
- Backrest Adjustment: Gas spring
- Caster System: Dual Lever Retractable (4” casters)
- Frame Construction: High strength seamless tubular frame
- Frame Color: Powder coat in Gunmetal Grey, Black or White
- Upholstery Foam: 2” thick
- Antimicrobial Naugahyde Upholstery: Over 60 upholstery color options
Specifications
- Lifting Capacity: 500 lbs.
- Dimensions: 27” x 77” (Customizable width from 25” – 30”)
- Power Supply: 120 Volt AC 60 Hz. Max. 2.5 Amp.
- Fire Retardant Upholstery
Lifetime Warranty: Cardon’s Lifetime Warranty
Our products are made with the highest quality materials and craftsmanship, that exceed your expectations in terms of performance, durability, and longevity. We use a unique high grade seamless steel tubing, that is designed for manufacturing automotive safety components. In combination with significant design enhancements, and the latest manufacturing technology we are confident in our upgraded lifetime warranty on frame offer.
Ultra 100 Diagnostic Imaging Treatment Table
The Ultra 100 is an ultrasound table created for sonographers for ultrasound procedures. This imaging table is ergonomically designed with your body mechanics in mind to reduce sonographer fatigue and patient repositioning.
The Ultra 100 easily adjusts to optimize ergonomic positioning for the sonographer while maintaining patient comfort. The backrest raises 90 degrees; the leg section lowers 90 degrees and rises to 85 degrees.
Customizable ultrasound cut-out(s) are available according to your requirements.
Soft Touch Technology
Cardon’s patented Soft Touch Footswitch has been strategically positioned on the base of your imaging table. Minimal amount of pressure applied by your foot will raise and lower the table with ease.
3 Section Table
- Electric Hi-Lo Control: Soft Touch Technology
- Height Adjustment: 19.5” – 38.5”
- Customizable Cut-out(s)
- Examination Paper Holder
- Leg Section Adjustment: Positive locking system
- Center Section: Fixed
- Backrest Adjustment: Gas spring
- Caster System: Dual Lever Retractable (4” casters)
- Frame Construction: High strength seamless tubular frame
- Frame Color: Powder coat in Gunmetal Grey, Black or White
- Upholstery Foam: 2” thick
- Antimicrobial Naugahyde Upholstery: Over 60 upholstery color options
Specifications
- Lifting Capacity: 500 lbs.
- Dimensions: 27” x 77” (Customizable width from 25” – 30”)
- Power Supply: 120 Volt AC 60 Hz. Max. 2.5 Amp.
- Fire Retardant Upholstery
Lifetime Warranty: Cardon’s Lifetime Warranty
Our products are made with the highest quality materials and craftsmanship, that exceed your expectations in terms of performance, durability, and longevity. We use a unique high grade seamless steel tubing, that is designed for manufacturing automotive safety components. In combination with significant design enhancements, and the latest manufacturing technology we are confident in our upgraded lifetime warranty on frame offer.
