Echo 125 Diagnostic Imaging Treatment Table
The Echo 125 is an echocardiography table designed for sonographers. Our innovative stress echo cut-out allows for obtaining the proper apical views. This feature provides you with a better imaging experience by giving you easier access to your patient and minimize foreshortening.
The Echo 125 easily adjusts to optimize ergonomic positioning for the sonographer while maintaining patient comfort. This table also features Soft Touch Technology providing you with convenient access to electric hi-lo controls. The maximum lifting capacity is 500 lbs.
Customizable stress echo cut-out(s) are available according to your requirements.
Soft Touch Technology
Cardon’s patented Soft Touch Footswitch has been strategically positioned on the base of your imaging table.
Minimal amount of pressure applied by your foot will raise and lower the table with ease.
2 Section Table
- Electric Hi-Lo Control: Soft Touch Technology
- Height Adjustment: 19.5” – 38.5”
- Customizable Cut-out(s)
- Examination Paper Holder
- Leg Section: Fixed

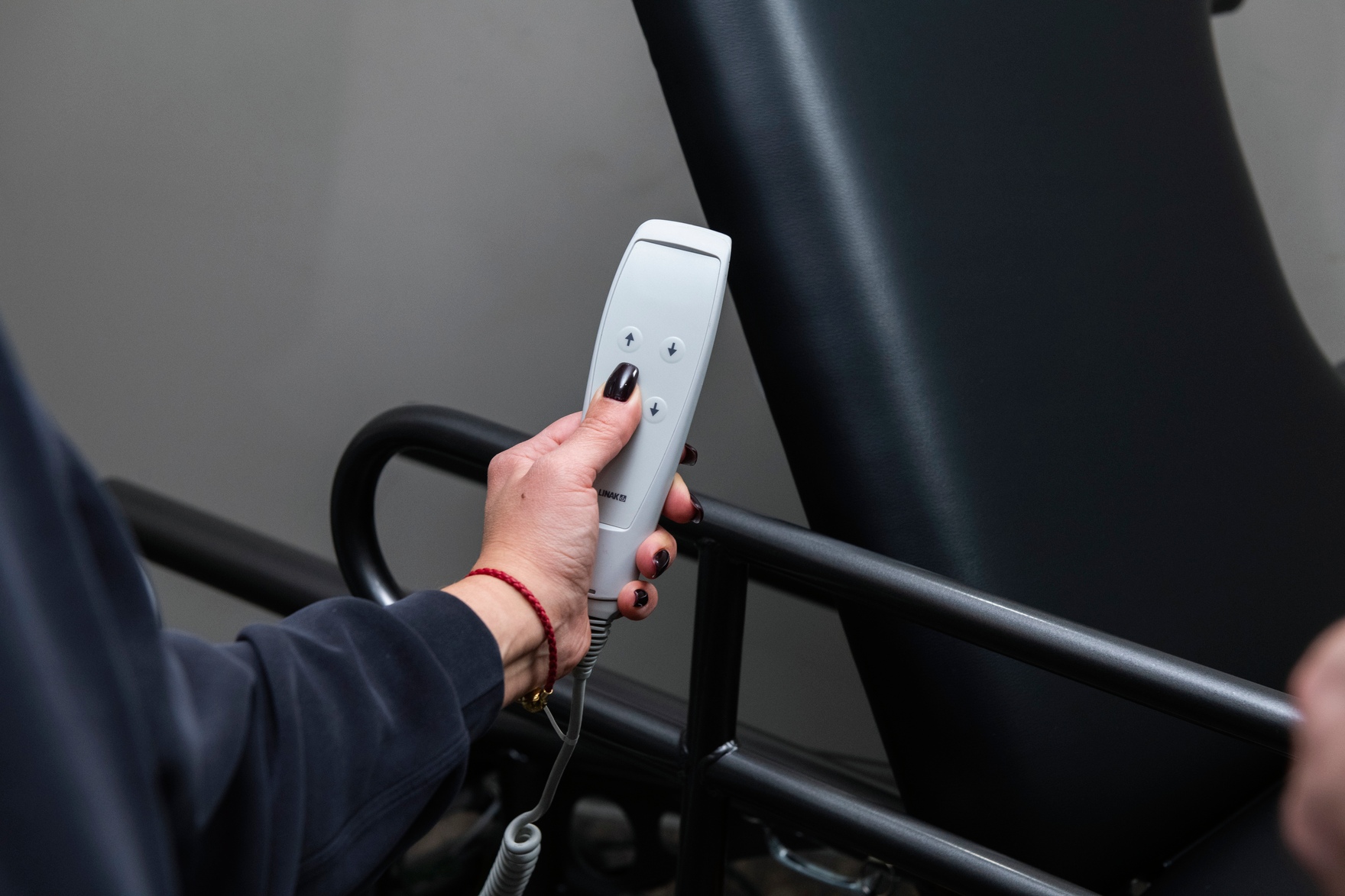

- Back Rest Adjustment: Powered assisted with handheld control
- Caster System: Dual Lever Retractable (4” casters)
- Frame Construction: High strength seamless tubular frame
- Frame Color: Powder coat in Gunmetal, Black or White
- Upholstery Foam: 2” thick
- Antimicrobial Naugahyde Upholstery: Over 60 upholstery color options
Specifications
- Lifting Capacity: 500 lbs.
- Dimensions: 30” x 79.5”
- Power Supply: 120 Volt AC 60 Hz. Max. 2.5 Amp.
- Fire Retardant Upholstery
Lifetime Warranty: Cardon’s Lifetime Warranty
Our products are made with the highest quality materials and craftsmanship, that exceed your expectations in terms of performance, durability, and longevity. We use a unique high grade seamless steel tubing, that is designed for manufacturing automotive safety components. In combination with significant design enhancements, and the latest manufacturing technology we are confident in our upgraded lifetime warranty on frame offer.
Echo 125 Diagnostic Imaging Treatment Table
The Echo 125 is an echocardiography table designed for sonographers. Our innovative stress echo cut-out allows for obtaining the proper apical views. This feature provides you with a better imaging experience by giving you easier access to your patient and minimize foreshortening.
The Echo 125 easily adjusts to optimize ergonomic positioning for the sonographer while maintaining patient comfort. This table also features Soft Touch Technology providing you with convenient access to electric hi-lo controls. The maximum lifting capacity is 500 lbs.
Customizable stress echo cut-out(s) are available according to your requirements.
Soft Touch Technology
Cardon’s patented Soft Touch Footswitch has been strategically positioned on the base of your imaging table.
Minimal amount of pressure applied by your foot will raise and lower the table with ease.
2 Section Table
- Electric Hi-Lo Control: Soft Touch Technology
- Height Adjustment: 19.5” – 38.5”
- Customizable Cut-out(s)
- Examination Paper Holder
- Leg Section: Fixed
- Back Rest Adjustment: Powered assisted with handheld control
- Caster System: Dual Lever Retractable (4” casters)
- Frame Construction: High strength seamless tubular frame
- Frame Color: Powder coat in Gunmetal, Black or White
- Upholstery Foam: 2” thick
- Antimicrobial Naugahyde Upholstery: Over 60 upholstery color options
Specifications
- Lifting Capacity: 500 lbs.
- Dimensions: 30” x 79.5”
- Power Supply: 120 Volt AC 60 Hz. Max. 2.5 Amp.
- Fire Retardant Upholstery
Lifetime Warranty: Cardon’s Lifetime Warranty
Our products are made with the highest quality materials and craftsmanship, that exceed your expectations in terms of performance, durability, and longevity. We use a unique high grade seamless steel tubing, that is designed for manufacturing automotive safety components. In combination with significant design enhancements, and the latest manufacturing technology we are confident in our upgraded lifetime warranty on frame offer.
